Assignment 5: MyEditor Part 1

Due Friday, February 20th, before midnight

We will spend the next two weeks building your own VIM editor using the ncurses library.

The goals for this assignment are:

Design a user application
Design data structures that support good performance
Work with C: structs, malloc/free, etc
Work with the ncurses API for working with files and the terminal

Update your repository

We will use the same repository as Assignment 1

Pull to get the basecode from you repository on Github

$ cd https://github.com/BrynMawr-CS223-S26
$ git pull

Your repository should now contain a new folder named A05-A06.

Background: NCurses

We will the ncurses library to render text to the screen and respond to user input.

https://tldp.org/HOWTO/NCURSES-Programming-HOWTO/helloworld.html

The program below initializes a terminal screen, prints "Hello World!", and exits when the user presses any key. All ncurses applications need to initialize (initscr) and cleanup (endwin) the terminal at the start and end of the program.

#include <ncurses.h>

int main()
{
	initscr();			/* Start curses mode 		  */
	printw("Hello World !!!");	/* Print Hello World		  */
	refresh();			/* Print it on to the real screen */
	getch();			/* Wait for user input */
	endwin();			/* End curses mode		  */

	return 0;
}

1. Load

You will design a C data structure for loading and saving a file from disk. In file, myfile.h, define a struct that contains information about a currently loaded file. At minimum, it should contain

The number of lines in the file
A double linked list of lines. You can assume that all lines are shorter than 256 bytes.

In the files, myfile.h and myfile.c, define functions that implement the following features. These functions should take your struct as an argument.

Open a file and load its contents
Save a file
Cleanup the file’s resources

You should use the extern keyword in the header file to declare your functions. The implementations of your functions should be in the .c file. See the lecture notes for an example.

In the file, test_file.c, implement a program that tests your functions. Your test program should load a file, save it to a different file, and then close and clean it up.

$ cat ./test_file.c
#include "myfile.h"

int main() {
  const char* filename = "tolstoy.txt";

  myfile file;
  if (!load(&file, filename)) {
    printf("Could not open file\n");
  }
  else {
    printf("Loaded %s with %d lines\n", filename, file.num_lines);
  }

  if (!save(&file, "test.txt")) {
    printf("Could not save file\n");
  }
  close(&file);
  return 0;
}
$ valgrind ./test_file
=8717== Memcheck, a memory error detector
==8717== Copyright (C) 2002-2017, and GNU GPL'd, by Julian Seward et al.
==8717== Using Valgrind-3.18.1 and LibVEX; rerun with -h for copyright info
==8717== Command: ./test_file
==8717==
Loading file tolystoy.txt with 64942 lines.
==8974==
==8974== HEAP SUMMARY:
==8974==     in use at exit: 0 bytes in 0 blocks
==8974==   total heap usage: 2 allocs, 2 frees, 1,496 bytes allocated
==8974==
==8974== All heap blocks were freed -- no leaks are possible
==8974==

2. View

In the file, myeditor.c, implement an application that can view text files loaded with a command line argument.

$ ./myeditor
usage: myeditor <filename>
$ ./myeditor bee.xt
bee.xt not found

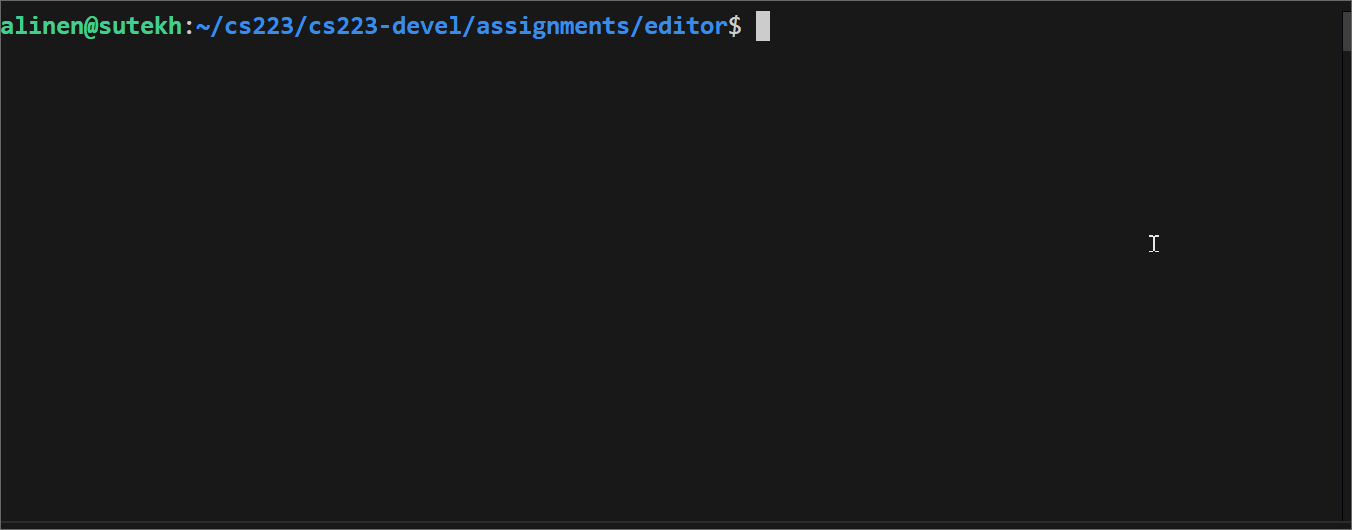

$ ./myeditor tolstoy.txt

Features

Reuses your file data structure
Loading a file from the command line
Quitting with :q
Scrolling through the file using the arrow keys
Displaying the current row, column, and filename in a banner on the last row

Feel free to extend your API from the previous question!

3. Submit your Work

Push you work to Github to submit your work.

$ cd A05-A06
$ git add *.c
$ git commit -m "A05-A06 milestone complete"
$ git push

Grading Rubric

Assignment rubrics

Grades are out of 4 points.

Features: * (2 points) Doubly-linked list for holding lines adheres to API test_file runs without memory errors * (0.5 points) Displaying the current row, column, and filename * (0.5 points) Quitting with :q * (0.75 points) Scrolling based on rows and cols * (0.25 points) Loading a file from the command line

Code rubrics

For full credit, your C programs must be feature-complete, robust (e.g. run without memory errors or crashing) and have good style.

Some credit lost for missing features or bugs, depending on severity of error
-12.5% for style errors. See the class coding style here.
-50% for memory errors
-100% for failure to checkin work to Github
-100% for failure to compile on linux using make
